In-house drawing office · Concept to construction
Technical Design
Turning design intent into coordinated, compliant, build-ready information.
Introduction
Design intent, made buildable.
Commercial interiors are won or lost long before anyone arrives on site. Drawings have to be coordinated, compliant, costed and genuinely buildable.
Our in-house technical design team develops concepts and design intent into fully coordinated construction information — general arrangements, detailed joinery drawings, ceiling and services layouts, finishes schedules and signage packages.
Working from an architect’s drawings or from a brief and a blank page, we resolve conflicts on paper, protect the budget through early value engineering, and issue site a package that can be built exactly as drawn.
How we deliver
From intent to issued drawings.
The stage where problems are cheap to solve. Every decision is tested on paper before it reaches the workshop or the site.
01
Brief & survey
Understanding the design intent, site conditions, scope and technical requirements.
02
Design development
Developing layouts, details, materials and construction solutions ready for coordination.
03
Technical drawings
Producing coordinated GA plans, elevations, details and manufacturing information.
04
Approval & issue
Final coordination, revisions and approved drawings issued for manufacture and construction.
Everything we cover
The full scope,
in one place.
A full drawing office in-house, working to the same programme as the site team rather than at arm’s length from it.
01
Measured Surveys
Accurate site dimensions recorded before design begins.
02
General Arrangements
Plans and elevations that set out the whole scheme.
03
Joinery Details
Component-level drawings our own workshop builds from.
04

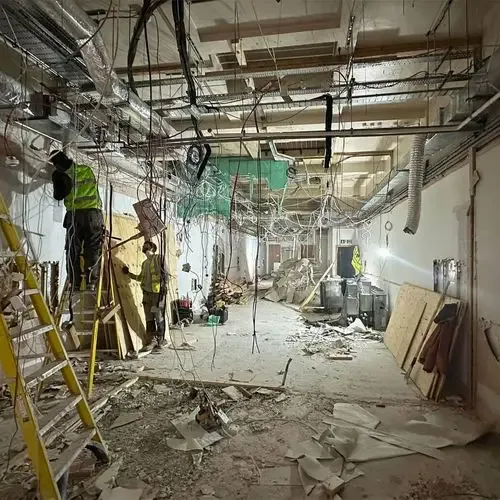

Reflected Ceiling Plans
Ceilings, lighting and services coordinated together.
05
M&E Coordination
Clashes resolved with consultants before installation.
06
Setting-Out Drawings
Dimensional information site can work to directly.
07
Finishes Schedules
Materials, laminates and finishes specified and tracked.
08
Signage & Graphics
Brand elements detailed for manufacture and install.
09
3D Visualisation
Renders that let clients sign off with confidence.
10
Compliance Review
Building Regulations, access and fire requirements checked.
11
Value Engineering
Alternative details that protect budget, not quality.
12
Issued for Construction
Checked, revision-controlled packages released to site.
Behind the build
03 —Where ideas become buildable.
Surveys, sections and revisions — the quiet work that removes surprises from the programme.
Three services, one team
An integrated
approach.
Each of our services works independently, but they’re strongest when combined. Appoint us for one service or bring all three together. With project delivery, technical design and in-house joinery working as one team, we reduce handovers, improve coordination and provide greater ownership and accountability throughout the project — giving us greater control over quality, programme and delivery from start to finish.
Continue exploring
Next step
Let’s talk
about your
project.
Send us the brief, the drawings or just the deadline. We’ll tell you honestly what it takes to deliver it — programme, budget and the route we’d recommend.
